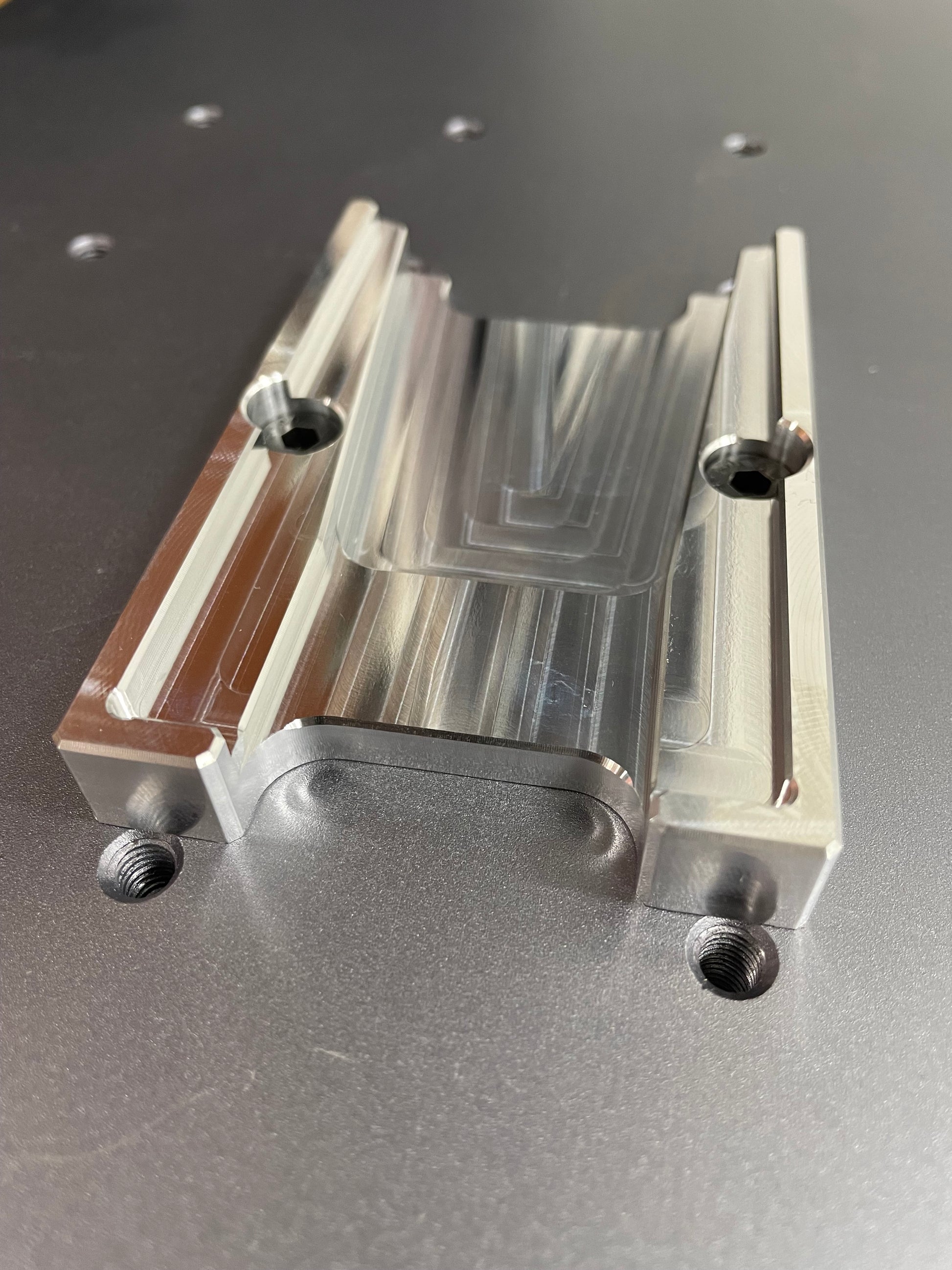

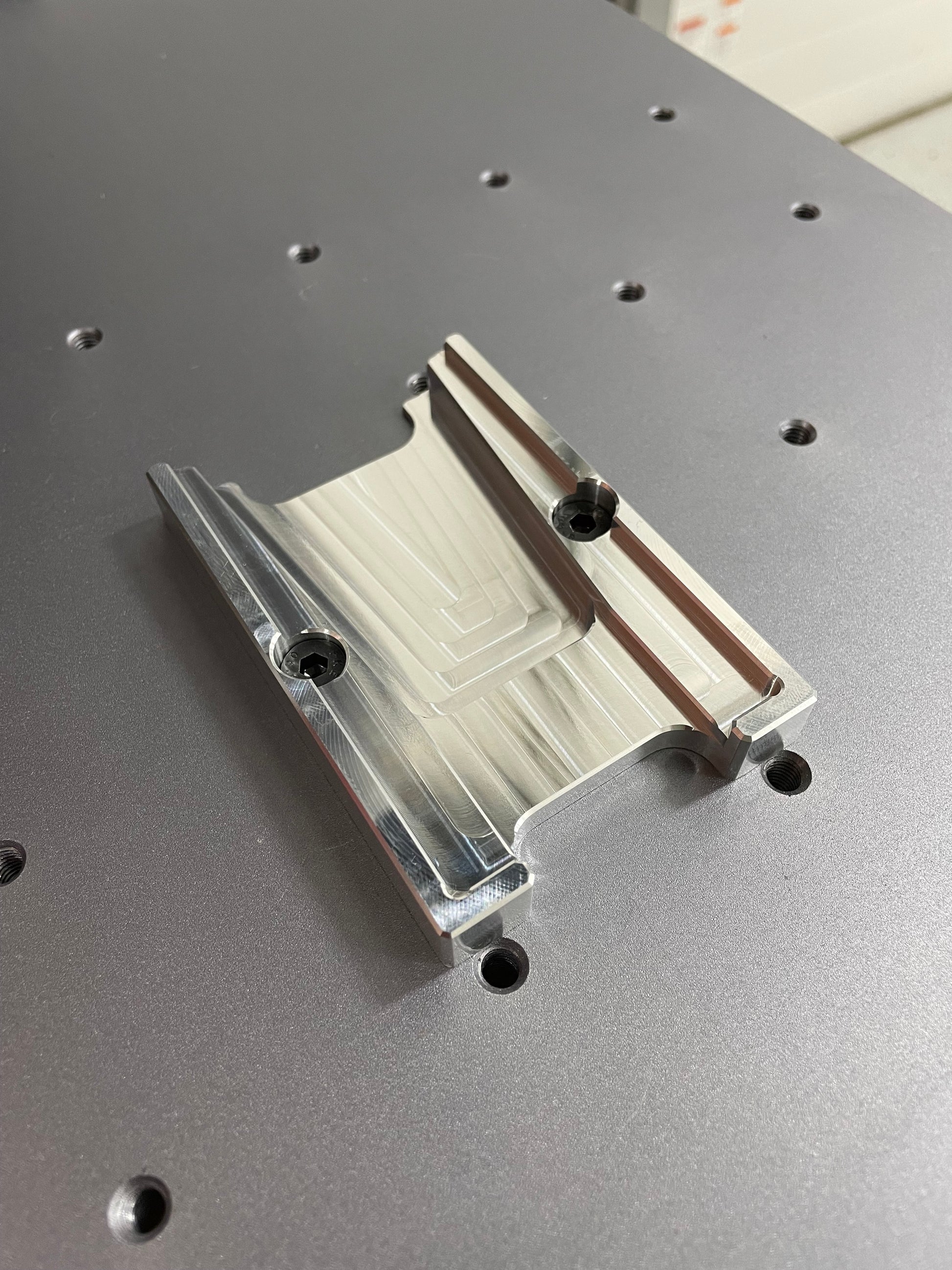

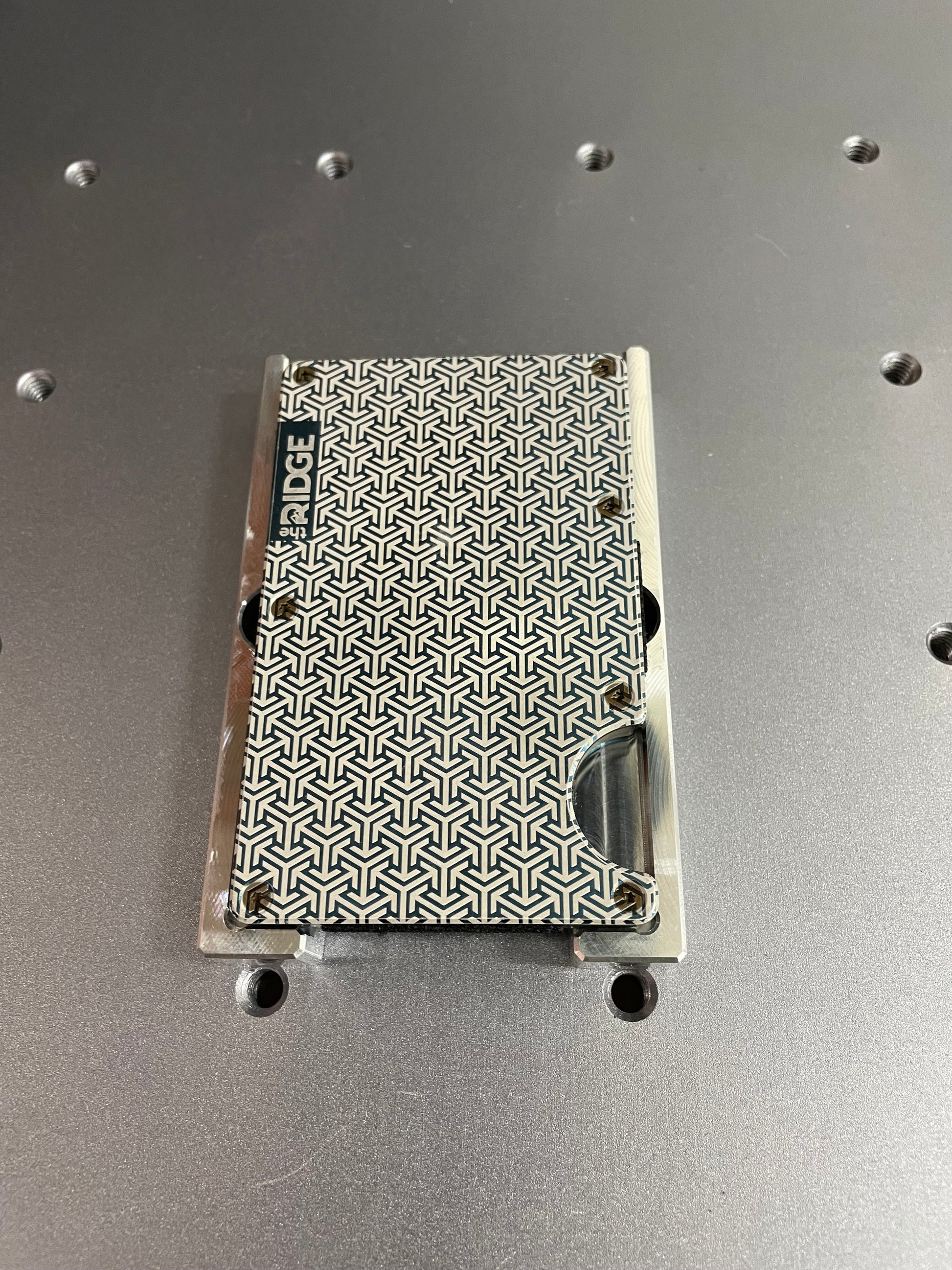

This is a jig/fixture for use for engraving aluminum wallets on your fiber laser. It allows for quick and easy swapping with easy and repeatable alignment.

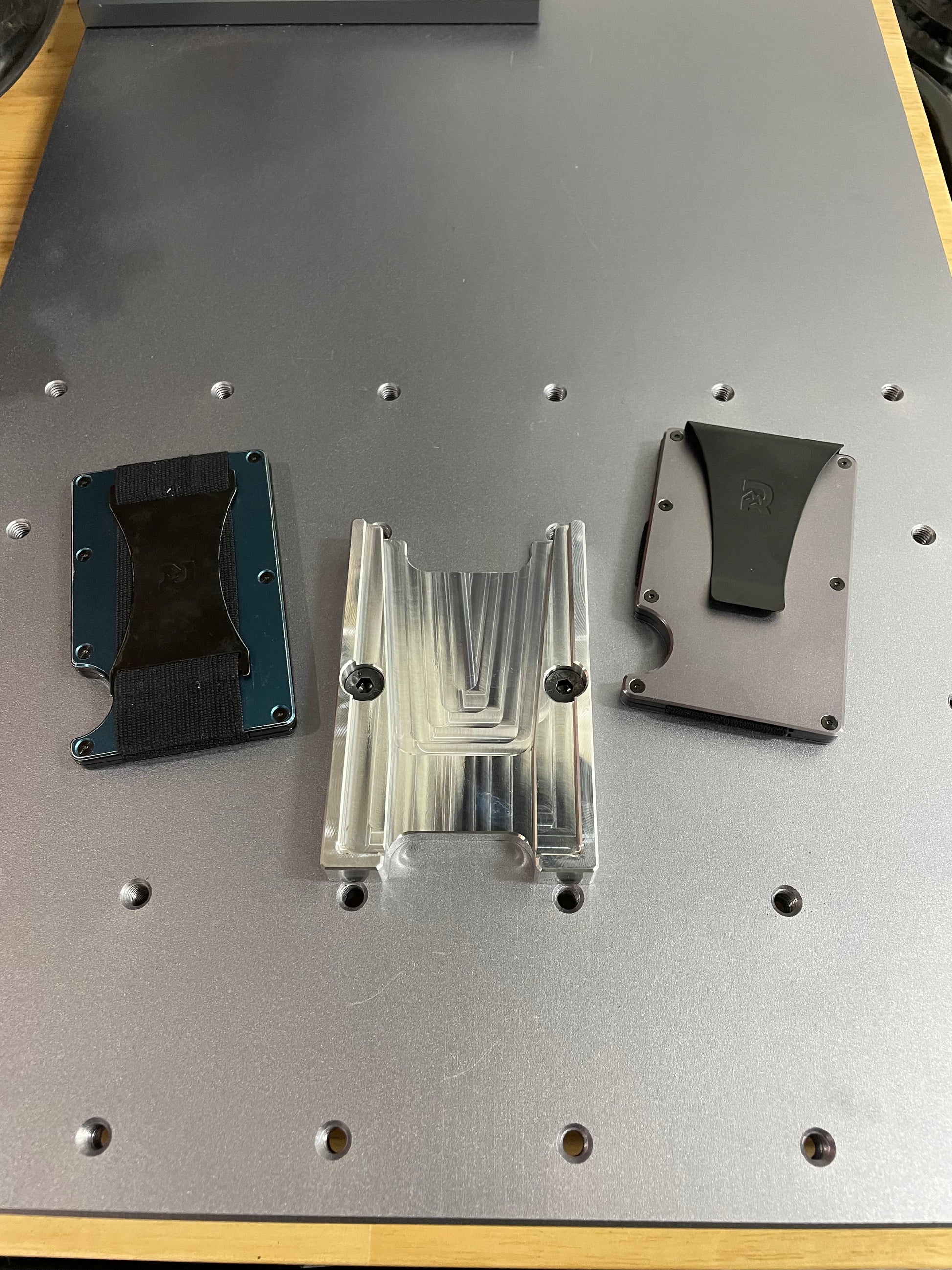

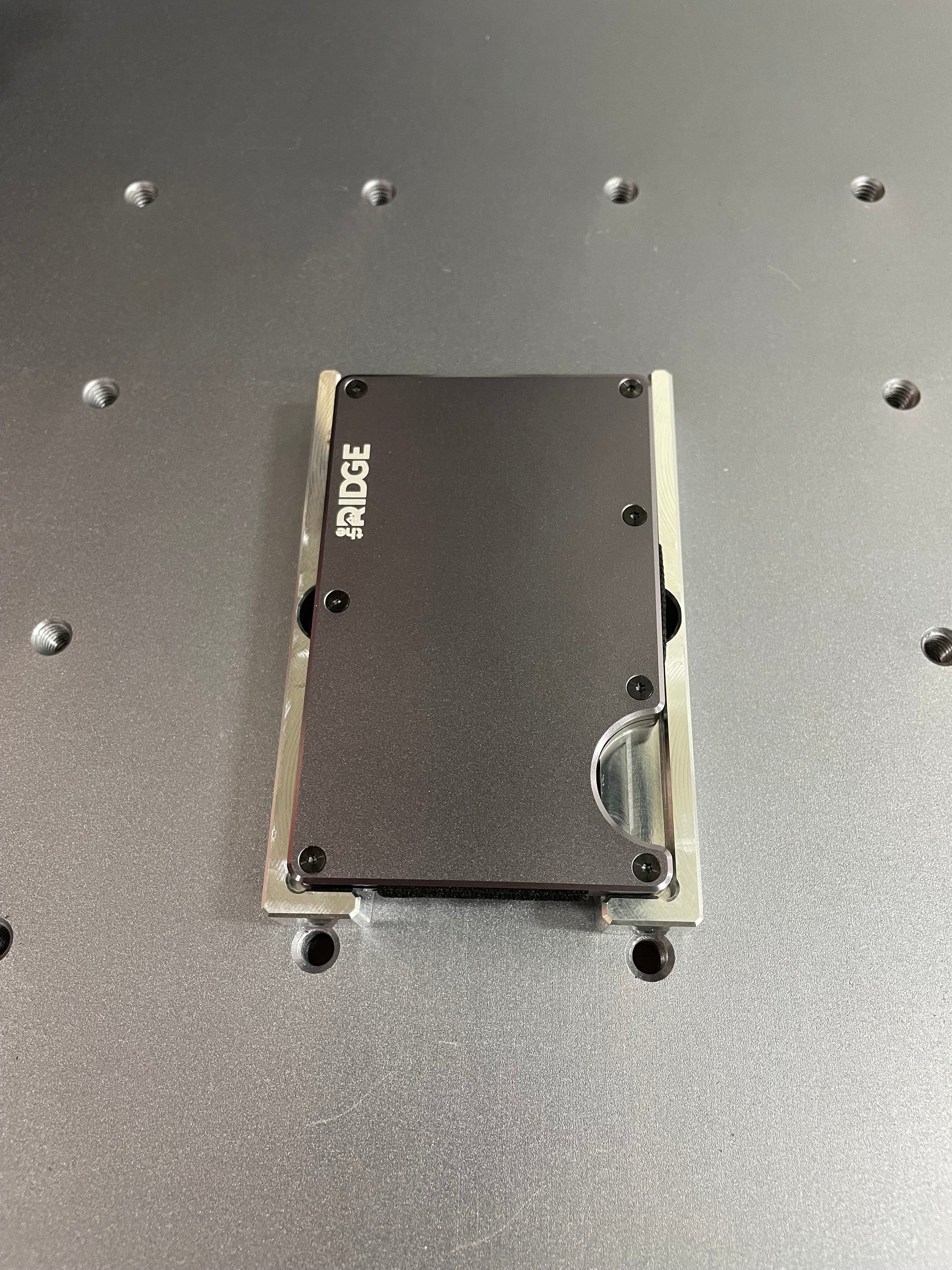

It is designed to work with wallets up to 3.375" x 2.13" (86mm x 54mm), with two flush mounted screw holes at 50mm spacing. The holder is compatible with clip or cash straps.
Includes 2 M6x10mm screws for securing it to your laser bed. It is precision milled out of 6061 aluminum stock. Overall dimensions are 94x62mm, 12mm high, with the wallet pocket being 3mm deep. The holder works with a clip up to 7.5mm thick and a cash strap up to 34mm wide.
