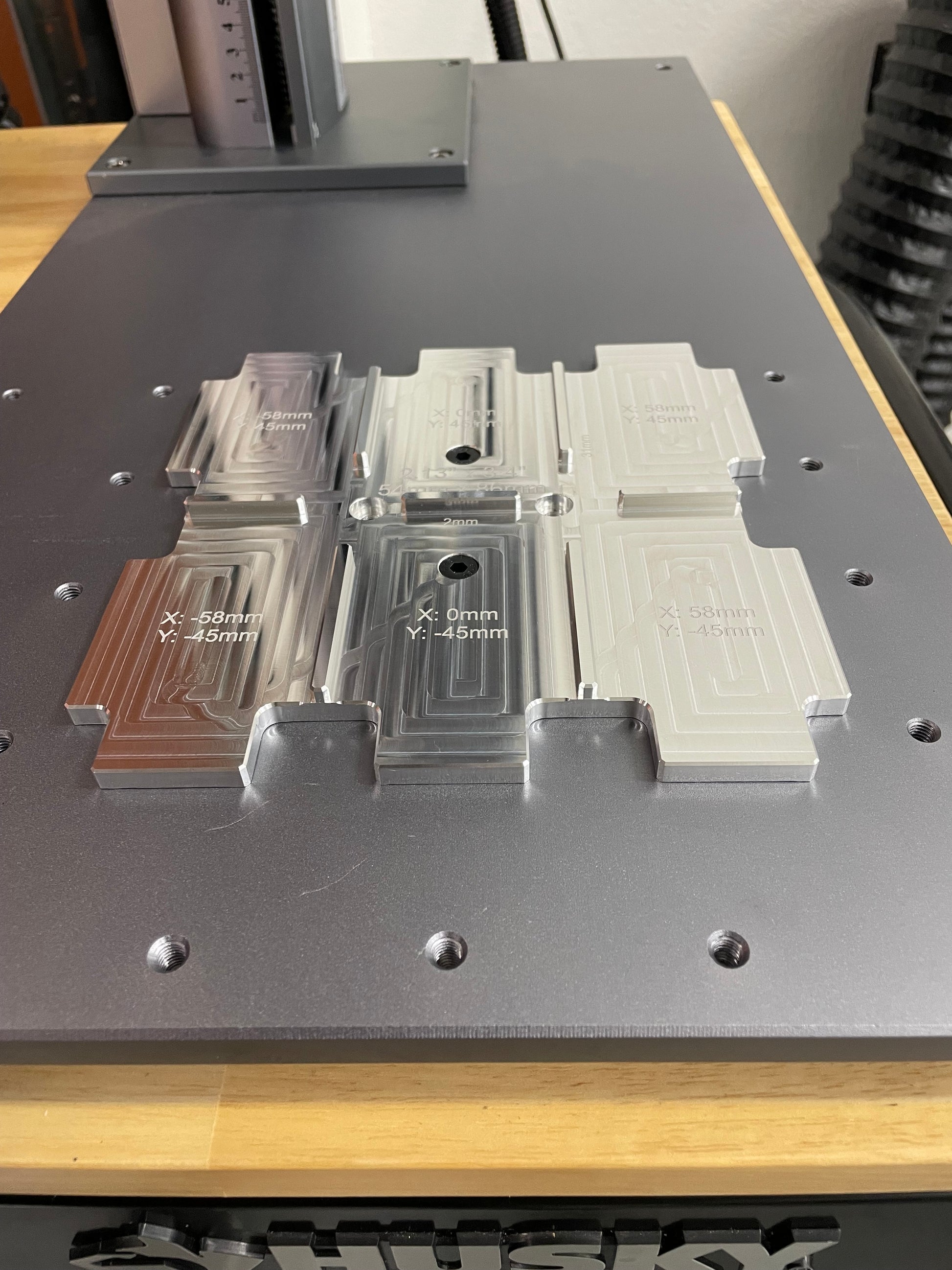

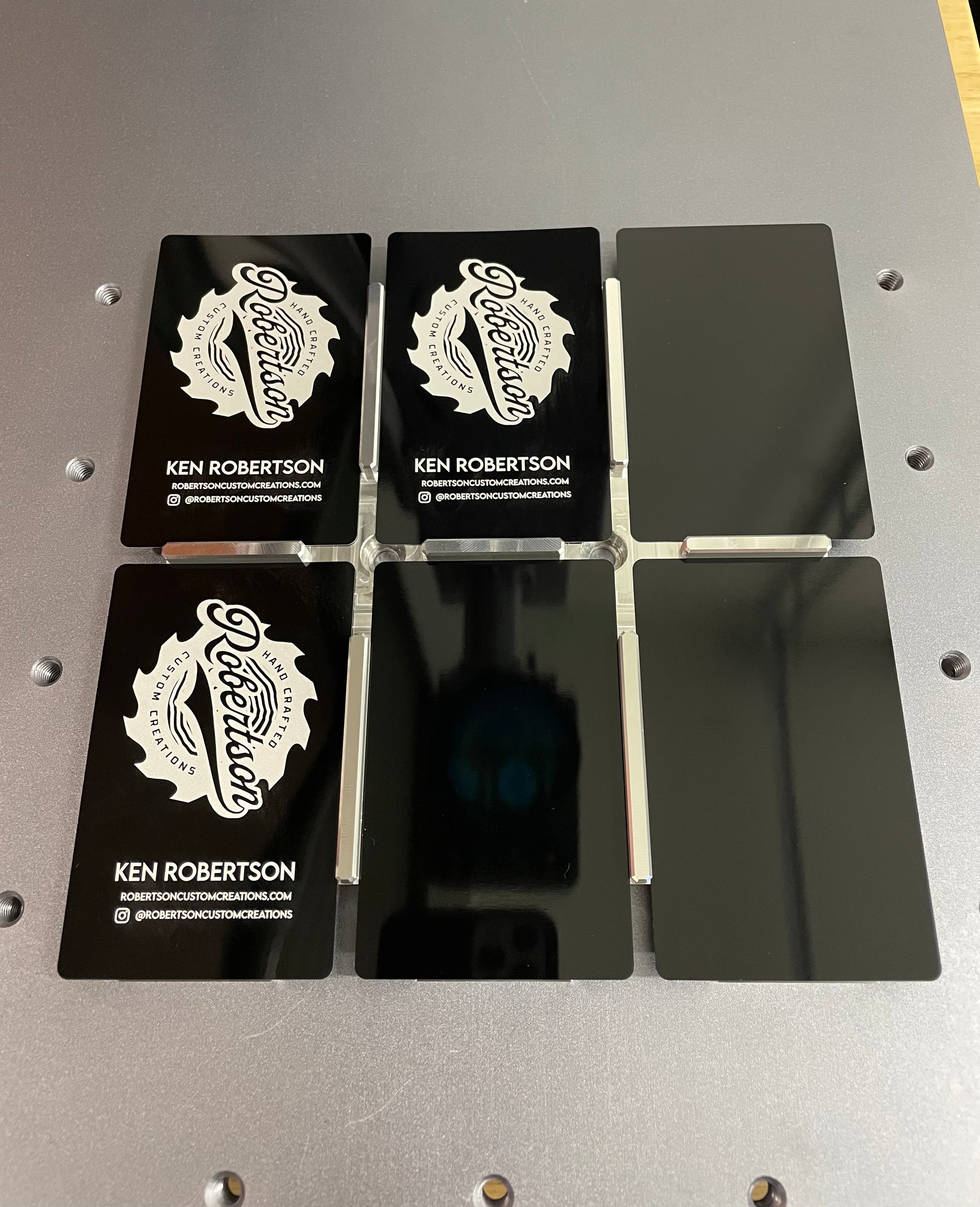

This is a jig/fixture for use for engraving six aluminum business cards on your fiber laser at a time.. It is designed to be used with a 200mm lens.

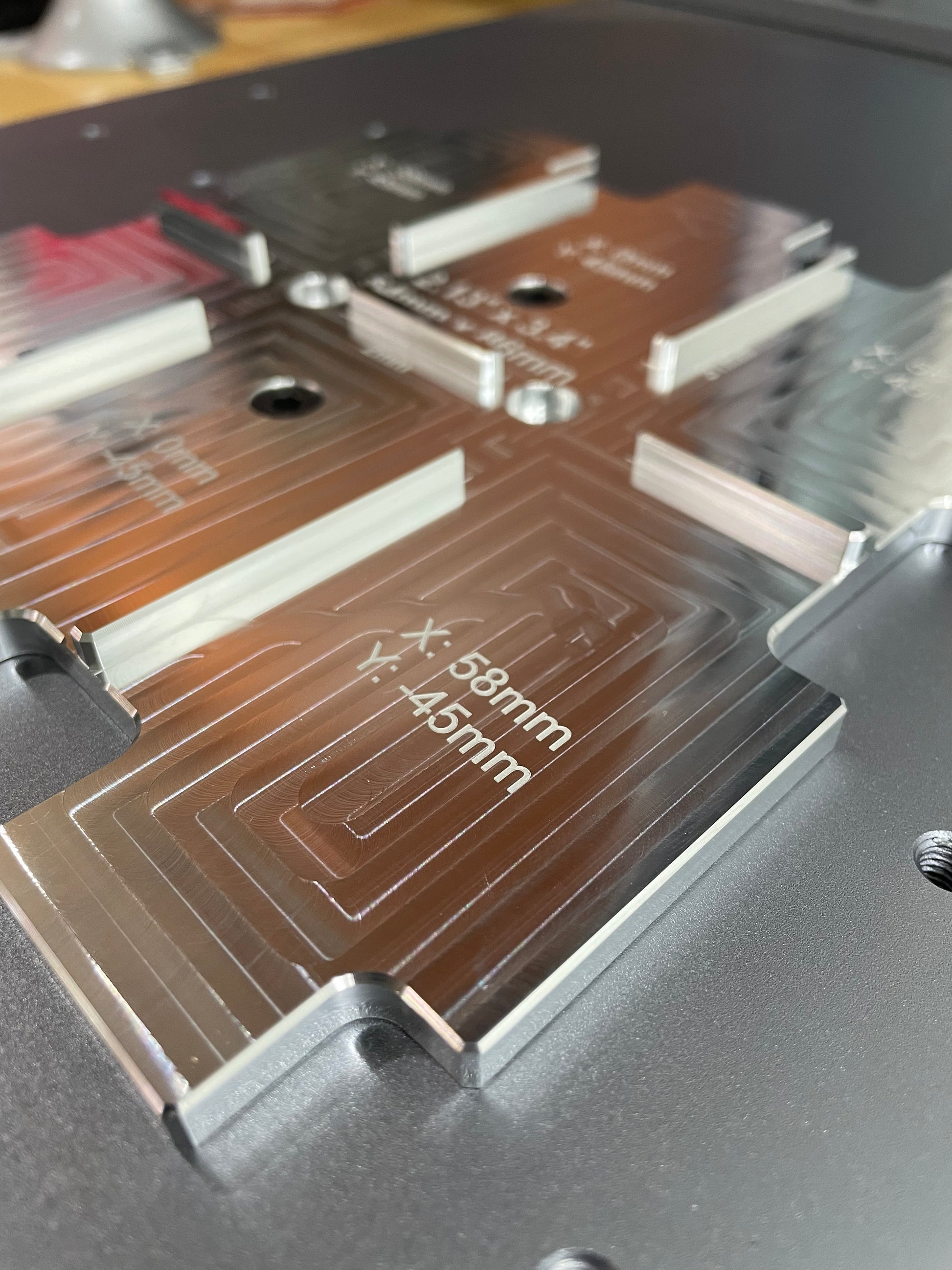

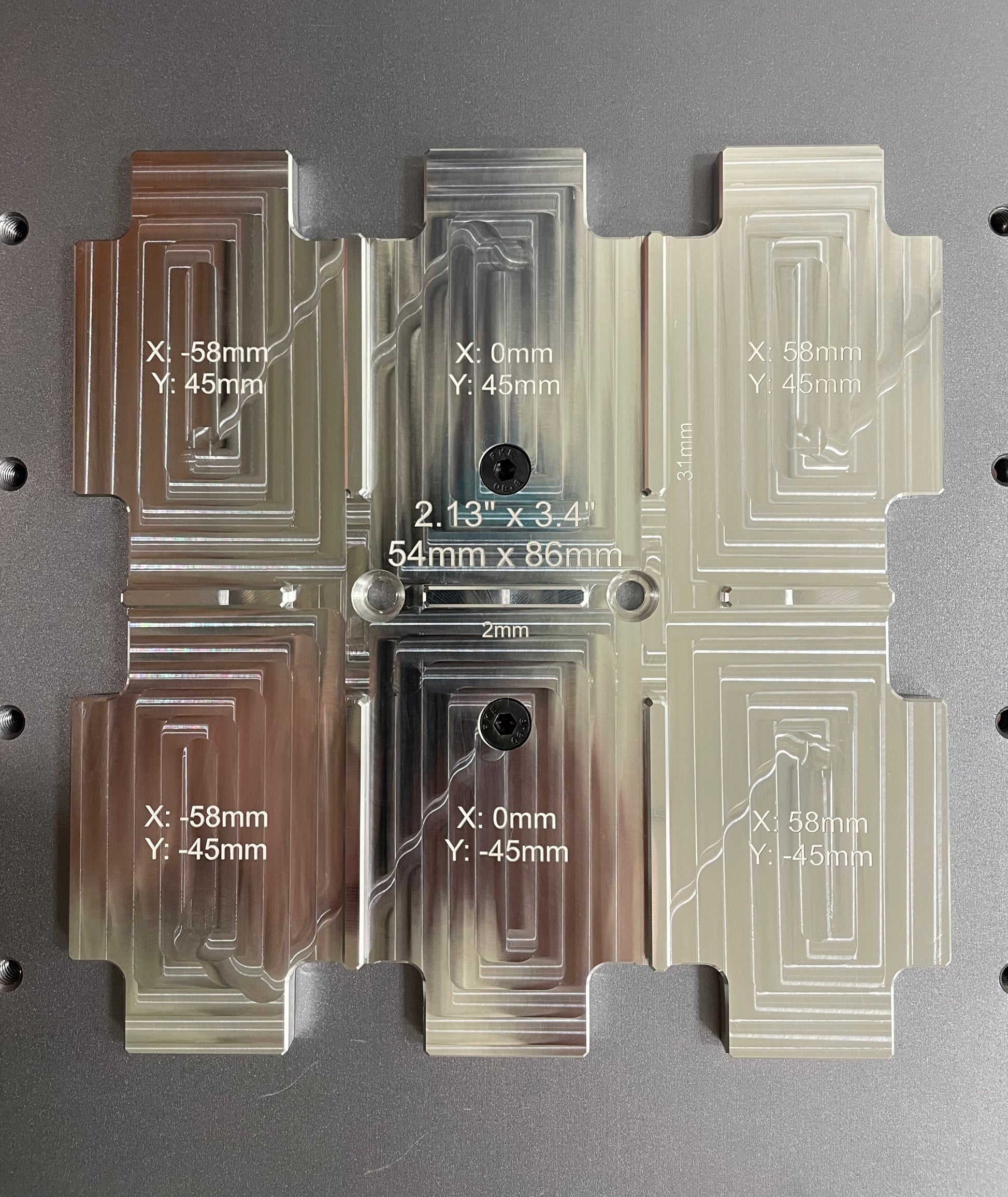

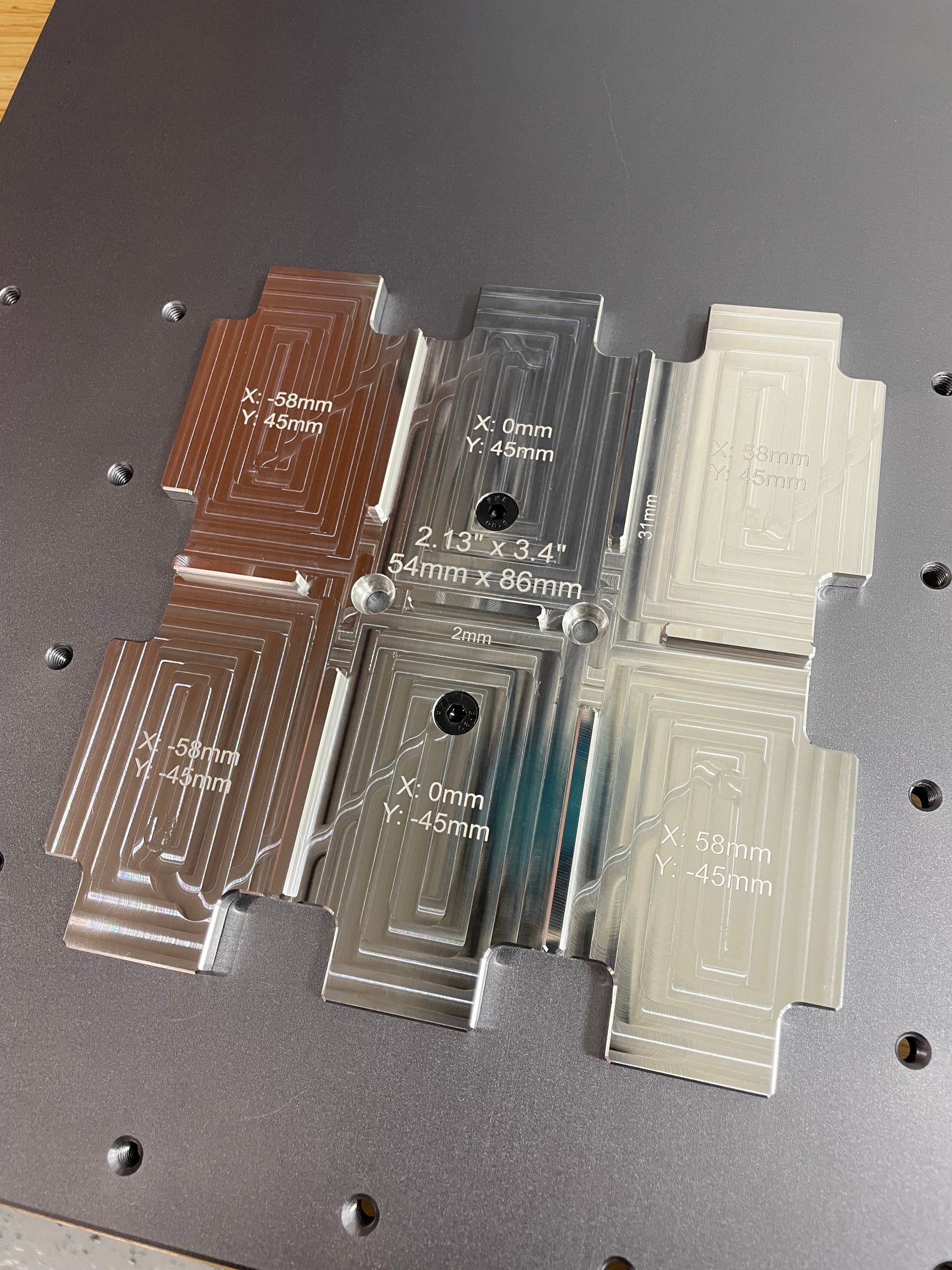

It is designed to easily fit cards up to 3.4" x 2.13" (86mm x 54mm), with four flush mounted screw holes at 50mm spacing. The fixture is 170mm x 176mm to easily fit within a 200mm or larger lens. Each of the separating walls are 4mm thick. The corners are notched to allow you to quickly pick up and place a new card.

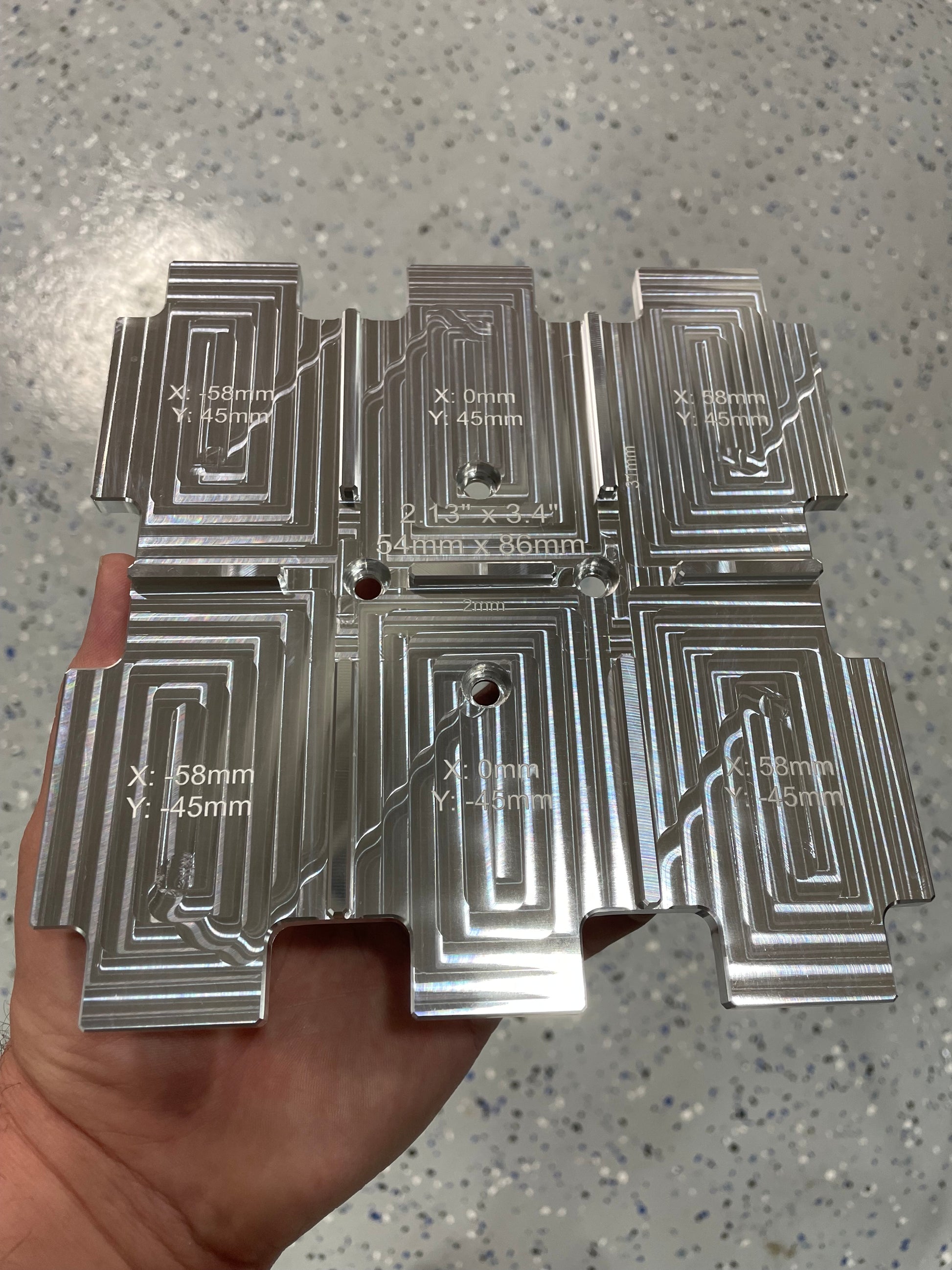

Includes 2 M6x10mm screws for securing it to your laser bed. It is precision milled out of 6061 aluminum stock.
