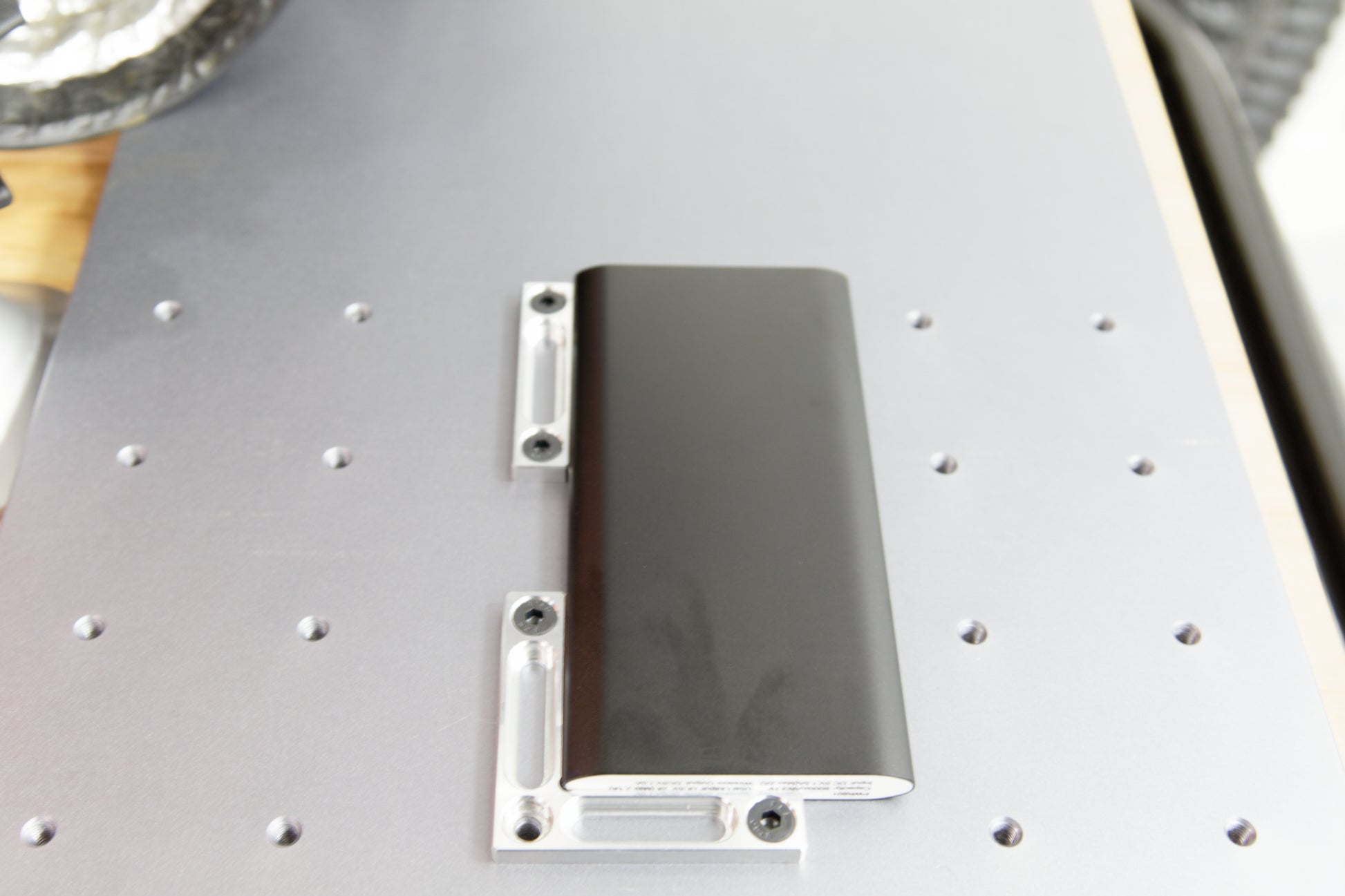

This kit is designed to easily mount to the bed of your fiber/galvo laser and allow quick repeatability and squaring. All pieces include recessed mounting holes designed for the screws to sit nicely flush with the tops. The necessary M6 screws are included. All holes are spaced 50mm apart, but also include a number of slots for additional screws for different beds or angled mounting.

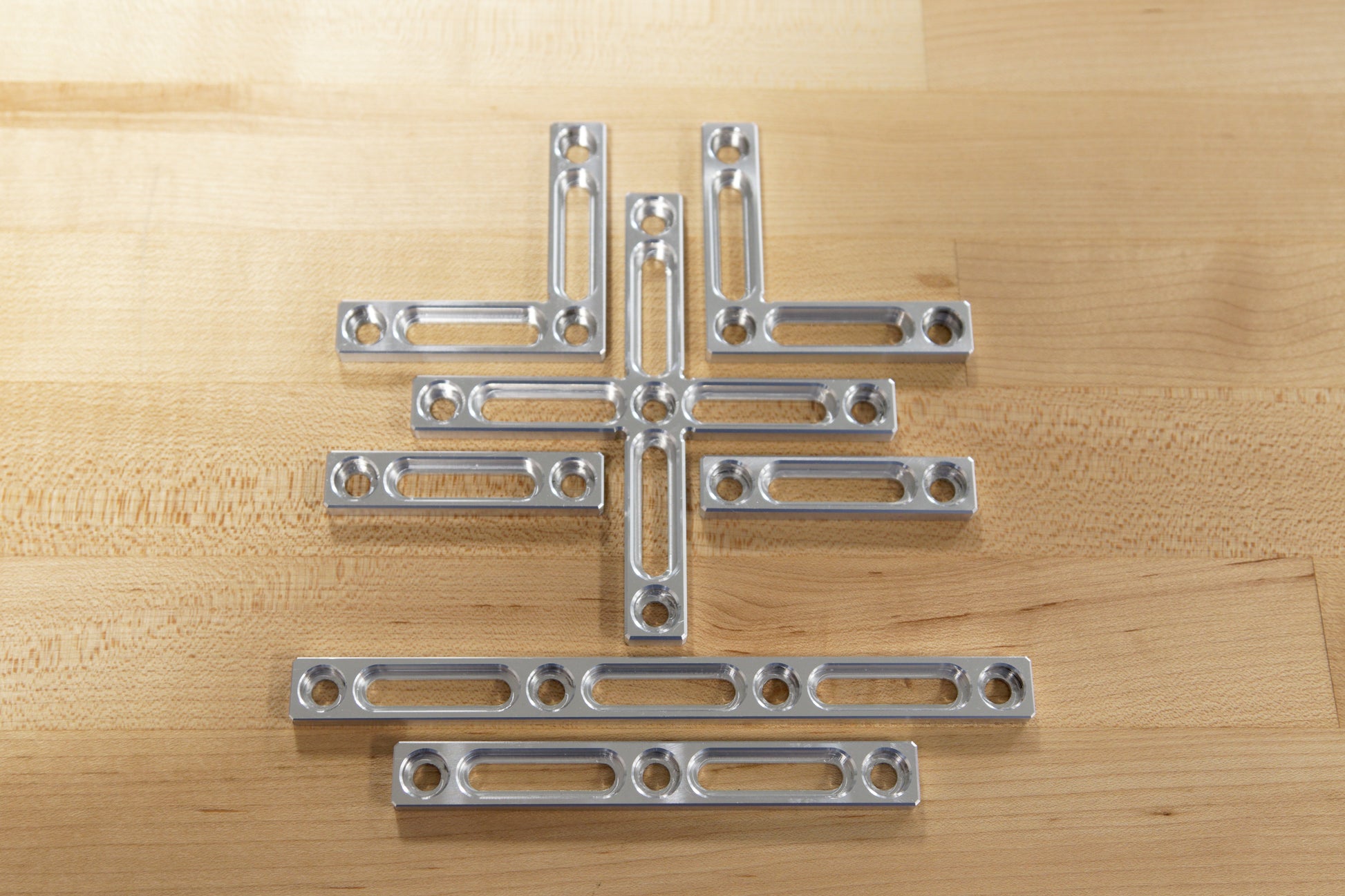

The kit includes:
1 cross piece (114mm outside, 50mm inside)

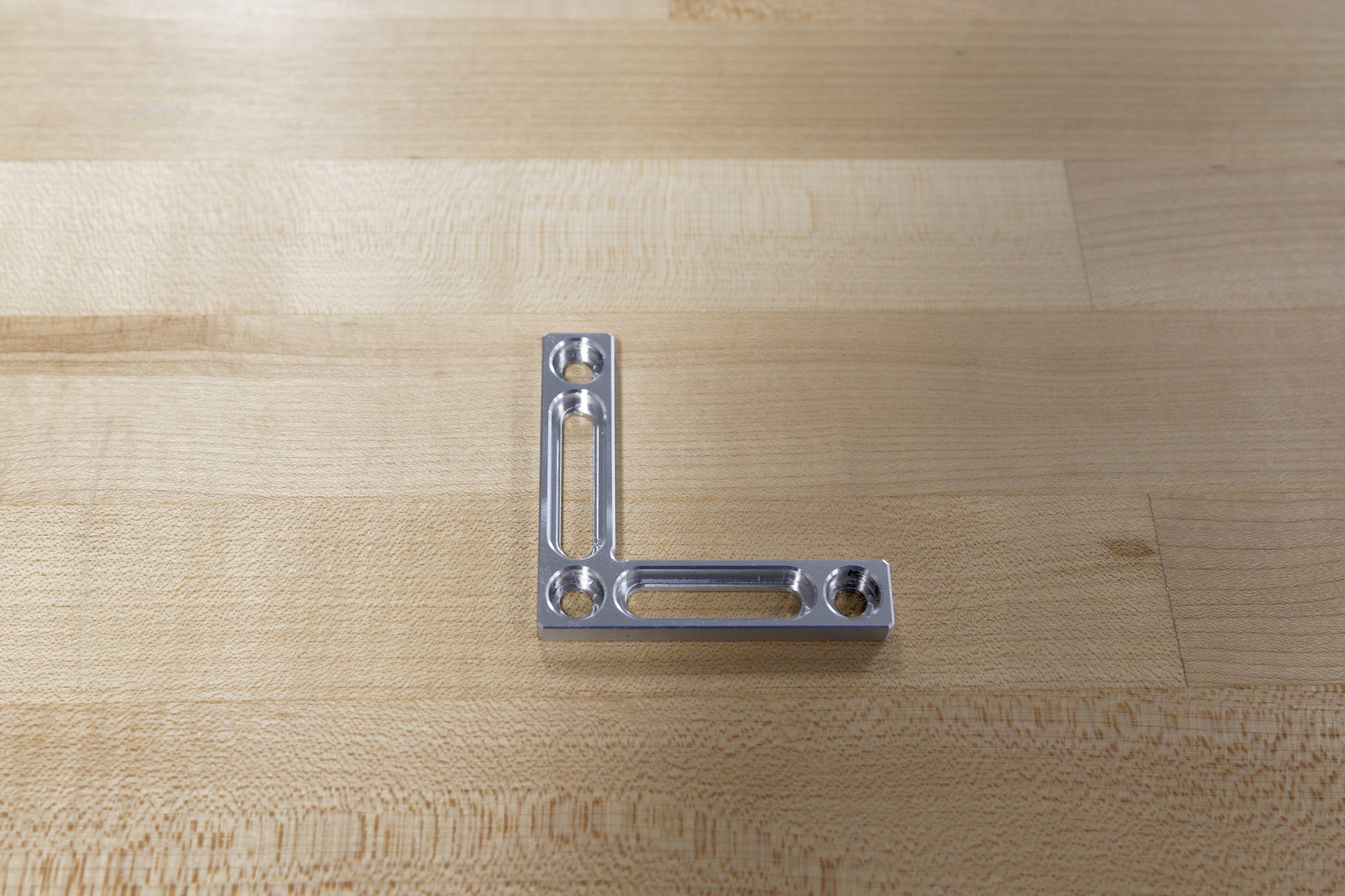

2 square pieces (64mm outside, 50mm inside)

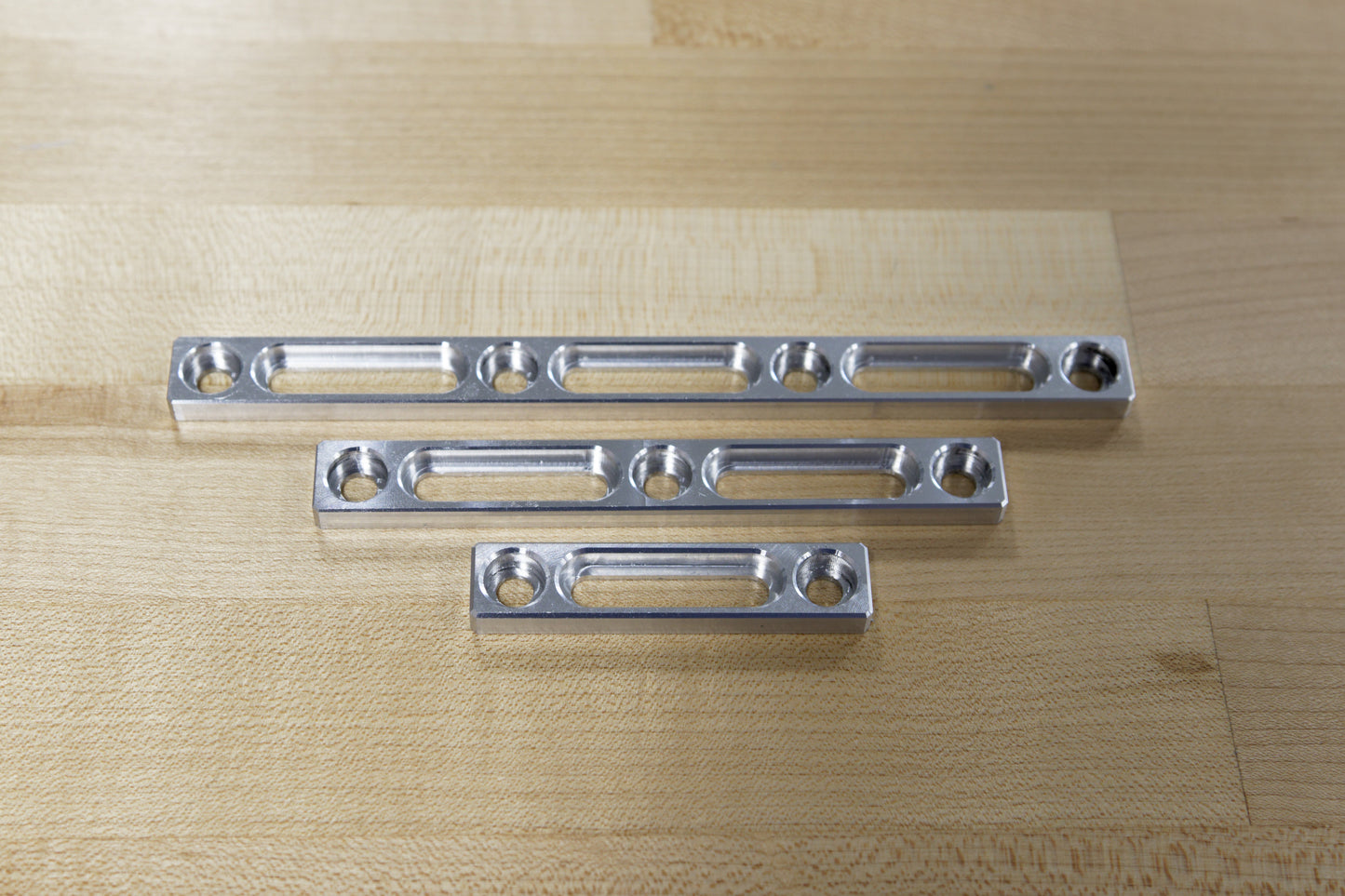

1 long fence (164mm)
1 medium fence (114mm)
2 short fences (64mm)
8 M6x10mm screws
All pieces are 5.5mm tall and 14mm wide. They are all precision milled out of 6061 aluminum.
